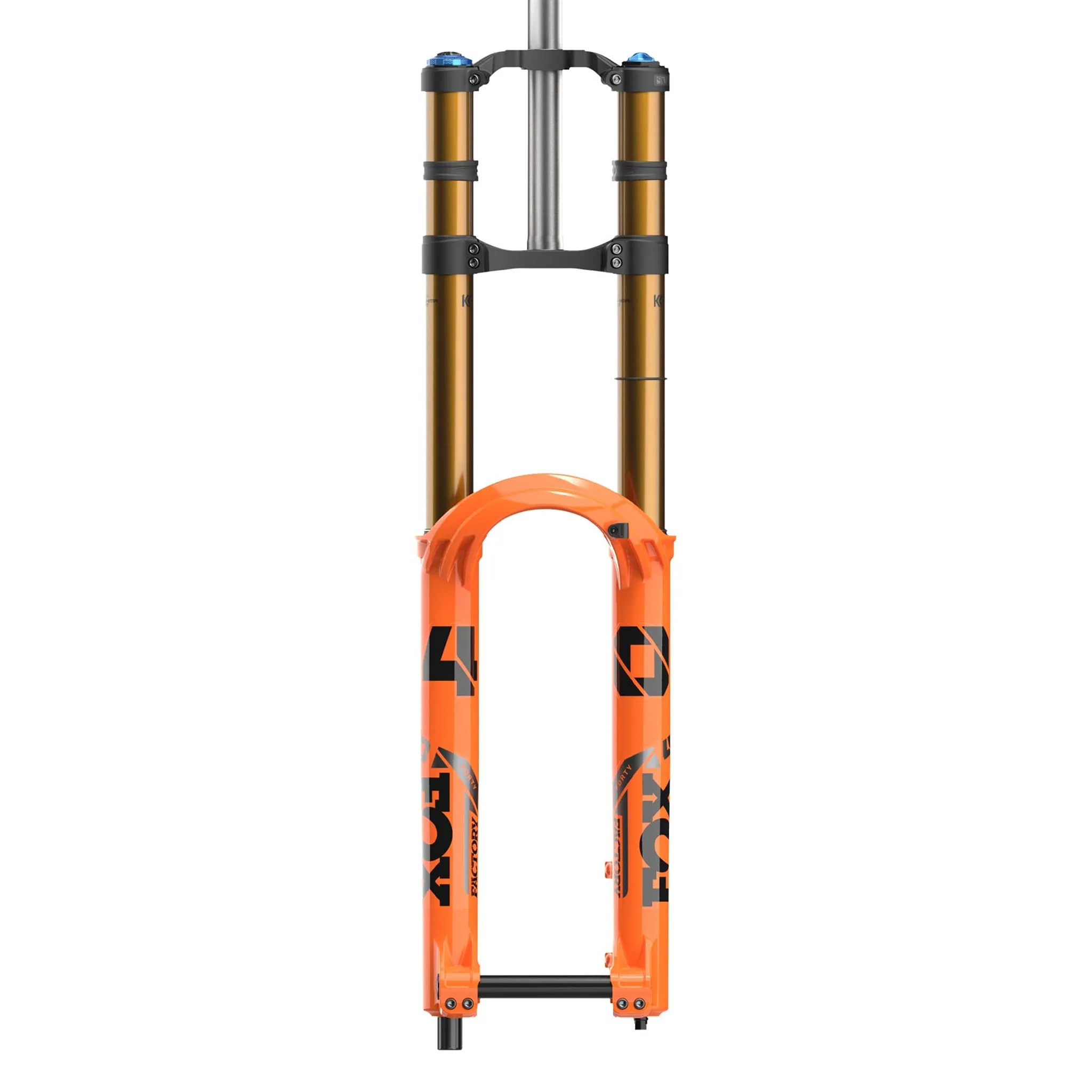

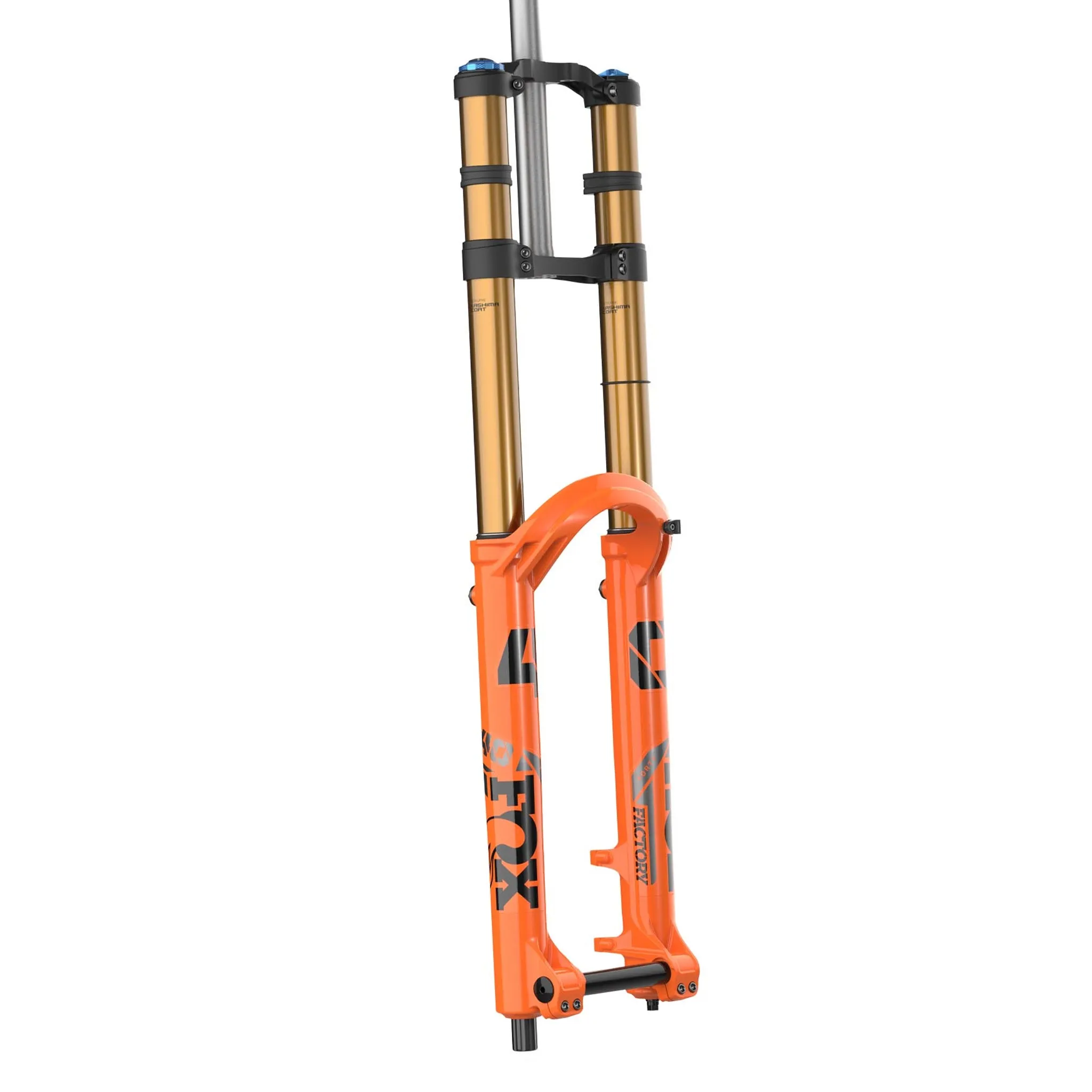

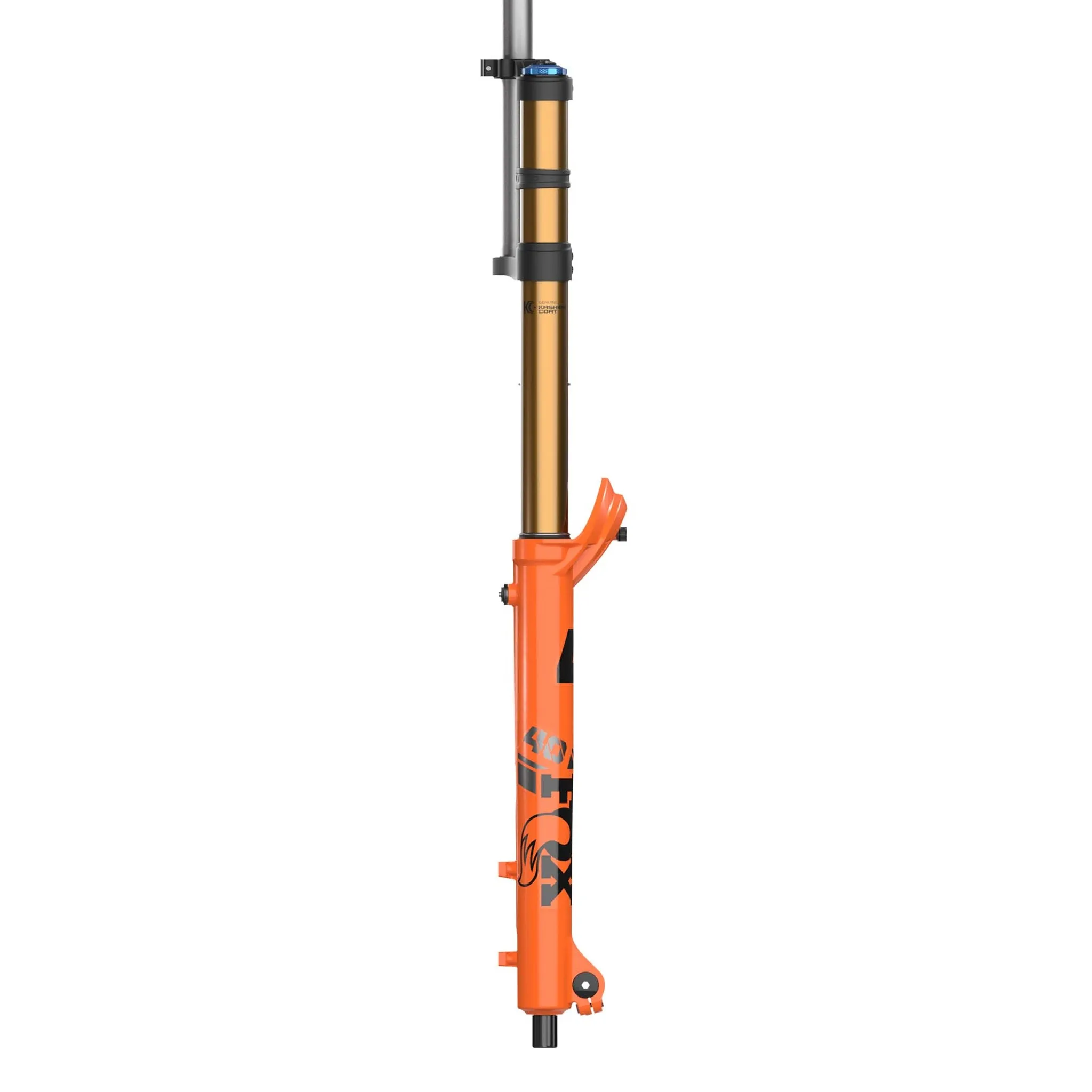

Target locked on the top step of the podium, developed in the crucible of World Cup competition, the 40 is the definitive DH race fork. A Grip2 damper with VVC, and an updated EVOL air spring, along with a host of other radical performance driven features, ensure that the 40 stays in the hot seat.
| Upper Tube Finish | Kashima Coat |
|---|---|
| Air Channels | Yes |
| Bleeders | Yes |
| Floating Axle | Yes |
| Rotor Size | 203 direct Post Mount, Up to 230 compatible |
| Mud Guard Mount | Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment |
| Air Spring | FLOAT EVOL |
| Steerer | 1.125 Straight |
| Starting Weight | 2745g (40, 29, F-S, 200, Grip X2, 20TA)* |
GRIP X2
GRIP X2 is the most tunable, supportive and smoothest descent-focused damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction. It gives you the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue.
| ADJUSTMENTS | |
|---|---|
| High-speed compression | 8 clicks |
| Low-speed compression | 18 clicks |
| High-speed rebound | 8 clicks |
| Low-speed rebound | 16 clicks |
